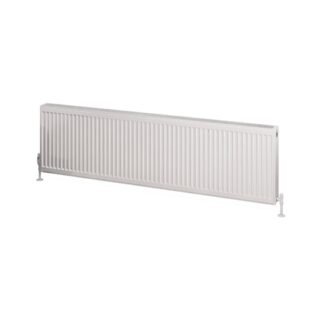

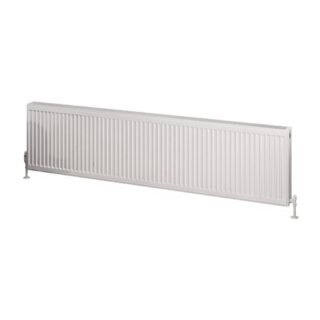

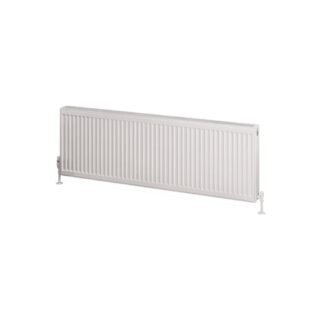

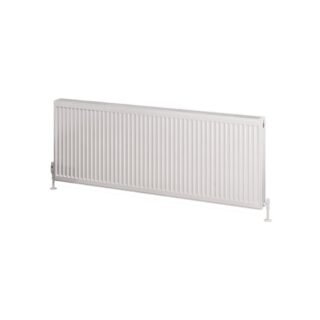

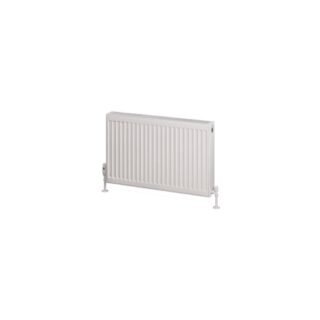

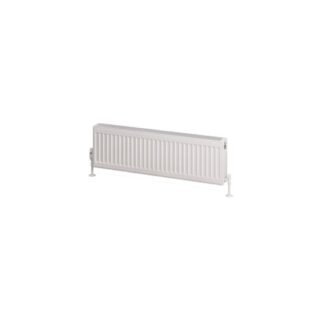

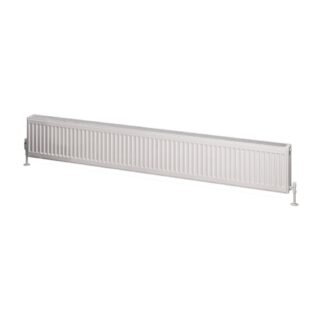

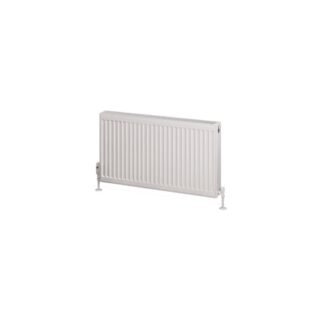

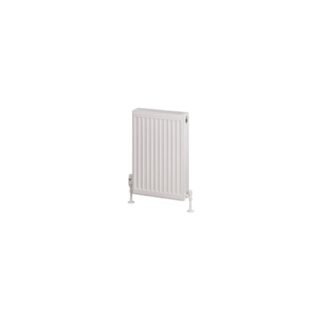

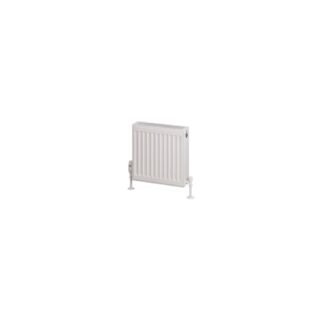

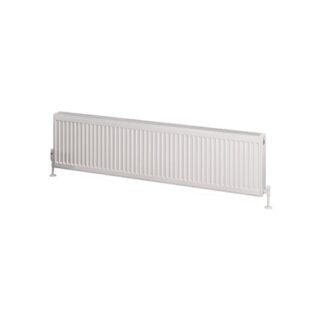

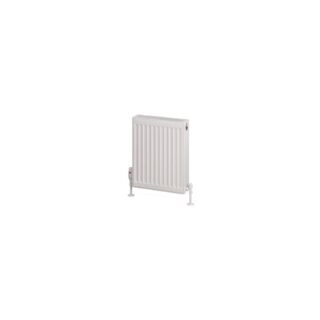

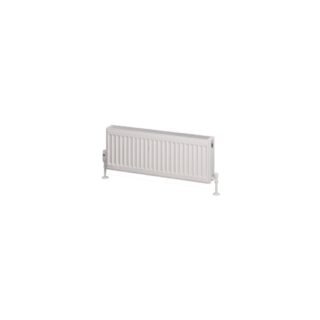

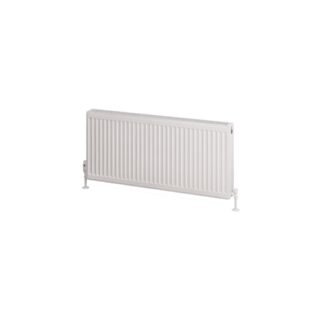

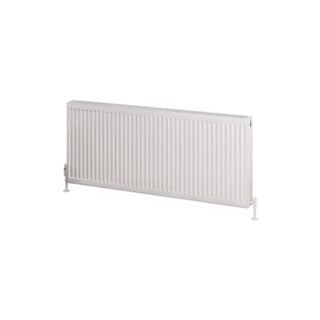

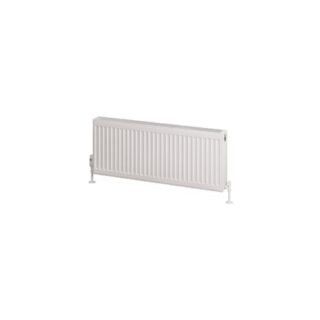

Eastbrook Type 22 Compact Single Panel Radiator – Gloss White
Price range: £122.31 through £1,069.44 inc VAT
View:- Technical Drawing
- Description
- Additional information
- Store Policies
- Enquiries
Description
- Product Type: Panel Radiator
- Brand: Eastbrook
- Collection: Type 22
- Depth: 102mm
- Finish: Gloss White
- Style: Modern
- Guarantee: 10 Years
- Material: Mild Steel
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves and Heating Element are not included
- Tested to BS EN 442 standards.
- Hot water central heating systems only.
- Max operating pressure 4 bars.
- Complete with fitted top grill & side panels.
- Radiators have 4 x 1/2 connections.
- Installation kit included in packaging.
- Heat outputs based on Delta T 50C & Delta T 60C.
- Radiators are only suitable for two-pipe installations.
- For indirect heating systems only.
- Pipework installation is recommended after receipt of radiator.
- Air vent (bleed valve) and blanking plug included in installation kit.
- Bottom opposite tapings are the width of the radiator and 72 or 84mm off the wall.
- Vertical tapings are approx. 55mm less than the height of the radiator and 72 or 84mm off the wall.
Additional information
| Weight | 10 kg |
|---|---|
| Size | 300mm x 1000mm, 300mm x 1200mm, 300mm x 1400mm, 300mm x 1600mm, 300mm x 2000mm, 300mm x 400mm, 300mm x 600mm, 300mm x 800mm, 400mm x 1000mm, 400mm x 1100mm, 400mm x 1200mm, 400mm x 1400mm, 400mm x 1600mm, 400mm x 1800mm, 400mm x 2000mm, 400mm x 400mm, 400mm x 500mm, 400mm x 600mm, 400mm x 700mm, 400mm x 800mm, 400mm x 900mm, 500mm x 1000mm, 500mm x 1100mm, 500mm x 1200mm, 500mm x 1300mm, 500mm x 1400mm, 500mm x 1500mm, 500mm x 1600mm, 500mm x 1800mm, 500mm x 2000mm, 500mm x 400mm, 500mm x 500mm, 500mm x 600mm, 500mm x 700mm, 500mm x 800mm, 500mm x 900mm, 600mm x 1000mm, 600mm x 1100mm, 600mm x 1200mm, 600mm x 1300mm, 600mm x 1400mm, 600mm x 1500mm, 600mm x 1600mm, 600mm x 1800mm, 600mm x 2000mm, 600mm x 400mm, 600mm x 500mm, 600mm x 600mm, 600mm x 700mm, 600mm X 800mm, 600mm x 900mm |
| Collection | |
| Depth | |
| Colour | |
| Style | |
| Guarantee | |
| Material | |
| Product Type | |
| Brand | Eastbrook |
