Description

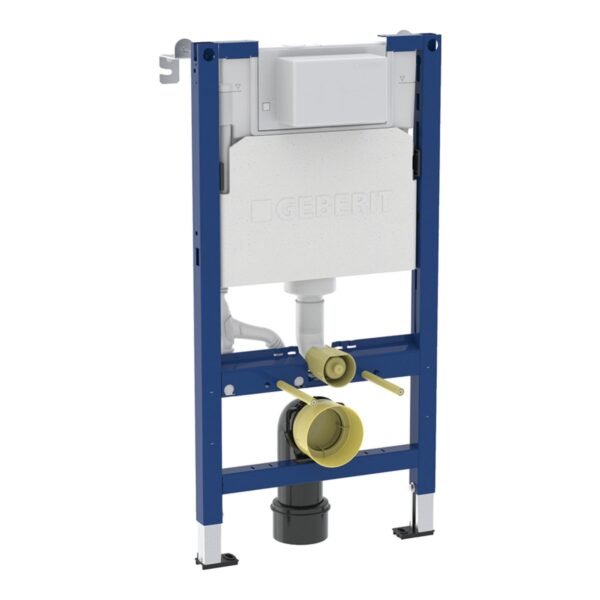

• Product Type: Wall Hung Toilet Frame
• Brand: Geberit
• Collection: Alpha
• Height: 980mm
• Width: 500mm
• Depth: 120mm
• Style: Modern
• Shape: Rectangular
• Mounting: Wall
• Material: Steel
• Easy to install and use
• Images are shown for illustration purpose only
• Flow pressure: 0.1?10 bar
• Operating temperature, water max. : 25 ?C
• Flush volume, factory setting: 5.8/3 l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range: 2?4 l
• For metal and wood frame walls
• For installation in part-height prewalls
• For floor constructions 0?20 cm
• For wall-hung WCs
• Statically self-supporting frame, protected against corrosion with powder coating
• Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm
• Frame with ? 9 mm drilling holes for fastening in wood frame construction
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Geberit Alpha concealed cistern 12 cm fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• For top or front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Protection box for service opening, can be cut to length, protects against moisture and dirt
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
