Description

• Product Type: Toilet Frame

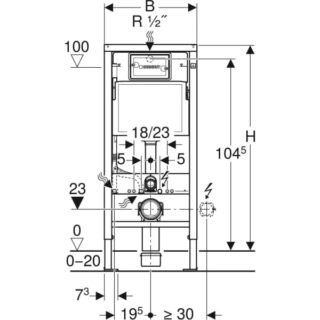

• Dimension: Height: 1120mm X Width: 500mm X Depth: 120mm

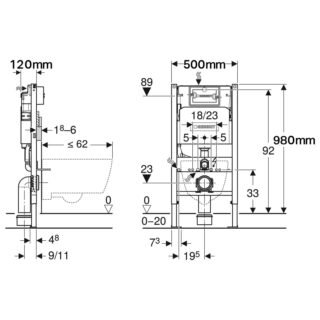

• Dimension: Height: 980mm X Width: 500mm X Depth: 120mm
• Style: Modern
• Mounting: Wall
• Brand: Geberit
• Collection: Duofix
• Shape: Rectangular
• Material: Steel
• Guarantee: 25 Years
• Easy to install and use
• Images are shown for illustration purposes only
• Operating temperature, water 25 Degree C
• Flush volume, factory setting: 5.8 / 3 l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range 2-4 l
• Height-adjustable: No
• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0-20 cm
• Statically self-supporting frame, protected against corrosion with powder coating
• Frame top open
• Frame with ??9 mm drilling holes for fastening in wood frame construction
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0?20 cm
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
• Angle stop valve R?1/2″, with adaptor ring
• Protection box for service opening, made of polystyrene foam
• 2 distance bolts
• 2 wall anchors
• Connection set for WC, 90 mm
• Connection bend 90? made of PE-HD, ? 90 mm
• Adaptor socket made of PE-HD, ? 90 / 110 mm
• 2 protection plugs
• Crossbar for panelling support
• 2 threaded rods M12
• Fastening material
