- Product Type: Wall Hung Toilet Frame
- Brand: Geberit
- Collection: Duofix

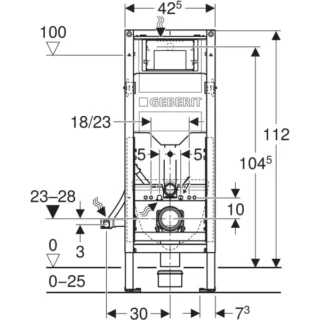

- Height: 1120mm
- Width: 425mm
- Depth: 170mm
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Material: Steel
- Easy to install and use
- Images are shown for illustration purpose only
- Flow pressure: 0.1?10 bar
- Operating temperature, water max. : 25 ?C
- Flush volume, factory setting: 5.8/3 l
- Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
- Flush volume small, adjustment range: 2?4 l
- For metal and wood frame walls
- For Geberit Duofix system walls
- For installation in part- or room-height prewalls
- For installation in room-height partition walls
- Suitable for less-abled installation
- For floor constructions 0?25 cm
- For wall-hung WCs
- Statically self-supporting frame, protected against corrosion with powder coating

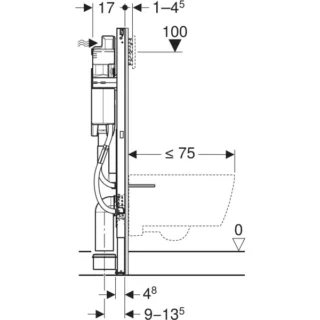

- Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 75 cm
- Frame width reduced for placement of support handles next to the element
- Adjustable installation height of WC during the installation phase, 41?46 cm
- With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
- Galvanised non-slip leg supports protected against corrosion
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Geberit Sigma concealed cistern 12 cm, fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- For front actuation, suitable for single, dual and stop-and-go flushes
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection box for service opening, can be cut to length, protects against moisture and dirt
- With conduit pipe for feed pipe for Geberit AquaClean shower toilets or for connection cable
- Fastening for electrical connection and Power & Connect Box
SKU:
111.352.00.6
Geberit Duofix Wall-Hung Toilet Frame & Barrier-free Concealed Cistern – 1120mm High
