Description

• Product Type: Wall Hung Toilet Frame
• Brand: Geberit
• Collection: Duofix

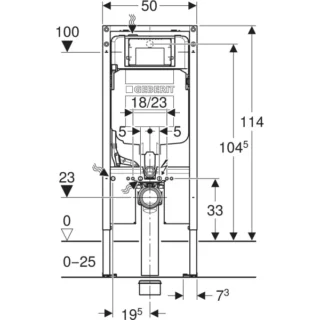

• Height: 1140mm
• Width: 500mm
• Depth: 80mm
• Style: Modern
• Shape: Rectangular
• Mounting: Wall
• Material: Steel
• Easy to install and use
• Images are shown for illustration purpose only
• Flow pressure: 0.1?10 bar
• Operating temperature, water max. : 25 ?C
• Flush volume, factory setting: 5.8/3 l
• Flush volume large, adjustment range: 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range: 2?4 l
• For metal and wood frame walls
• For Geberit Duofix system walls
• For installation in part- or room-height prewalls
• For installation in room-height partition walls
• For floor constructions 0?25 cm
• For wall-hung WCs
• Statically self-supporting frame, protected against corrosion with powder coating

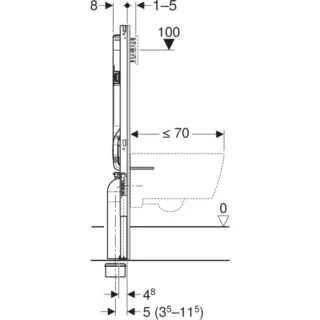

• Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
• With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
• Alternative fastening point for wall anchors
• Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
• Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
• Galvanised non-slip leg supports protected against corrosion
• Connection bend can be mounted without tools at different depths, adjustable range 80 mm
• Interrupted crossbar enables a front flush depth for the vertical outlet bend
• Waste connector bend, extended, for connection in floor
• Geberit Sigma concealed cistern 8 cm, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• For front actuation, suitable for single, dual and stop-and-go flushes
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the top left
• Protection box for service opening, can be cut to length, protects against moisture and dirt
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
