Description

• Product Type: Flush Plate
• Brand: Geberit
• Collection: Sigma10

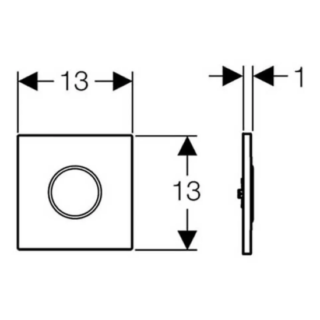

• Height: 130mm
• Width: 130mm
• Depth: 10mm
• Style: Modern
• Shape: Square
• Guarantee: 1 Year
• Images shown are for pictorial representation only
• Easy to install save time and money
• Flush Plate Type: Single Flush
• Flush Plate Operation: Push Button
• Flow Pressure: 1-8 bar
• Minimum Flow Pressure: 1 bar
• Maximum Test Pressure, Water: 16 bar
• Maximum Test Pressure, Air / Inert Gas: 3 bar
• Maximum Operating Temperature, Water: 30 degree C
• Flow Rate: 0.3 l/s
• Protection Degree: IP45
• Operating Voltage: 4.5 V DC
• Power Consumption: < 0.5 W
• Nominal Voltage: 110-240 V AC
• Mains Frequency: 50-60 Hz
• For automatic flush actuation of urinals
• For Geberit frames for urinal with front actuation
• For installation in installation sets for Geberit urinal flush controls
• Cover plate with securing bar
• Reliable IR distance detection
• Infrared user detection with background fade-out
• Water-saving hybrid mode can be set
• Flush time can be set
• Flush time can be set manually
• Adjustable interval flush
• Dynamic flushing time adjustment
• Pre-flush can be set
• Can be switched to operation with covered urinal
• Power supply via mains connection
• Ready for operation upon connection to mains
• Power supply unit with LED display
• Power failure control unit
• Valve-closing function when power fails
• One-time flush after activation of the power supply
• Functions can be set and queried with the Geberit Service Handy
• Flush actuation can be deactivated via Geberit Clean Handy
• Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
• Suitable for only Sigma frames
