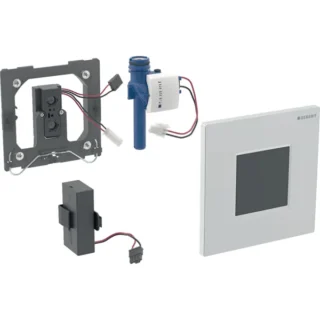

Geberit Type20 Battery Operated Urinal Flush Plate
- Description
- Additional information
Description
- Product Type: Flush Plate
- Brand: Geberit
- Collection: Type20

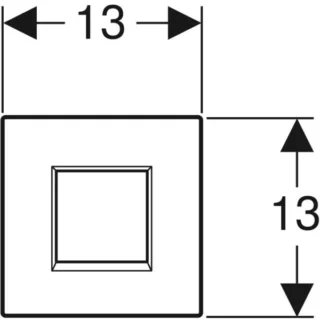

- Height: 130mm
- Width: 130mm
- Depth: 8mm
- Style: Modern
- Shape: Square
- Button Shape: Square
- Mounting: Wall
- Material: Die-Cast Zinc
- Easy to install and use
- Images are shown for illustration purpose only
- Battery type: Alkaline (1.5 V AA)
- Service life, supplied battery: 2 Years
- Protection degree: IP45
- Operating voltage: 3 V DC
- Flow pressure: 1?8 bar
- Test pressure, water max.: 16 bar
- Test pressure, air / inert gas max.: 3 bar
- Operating temperature, water max.: 30 ?C
- Flow rate at 1 bar without flow limiter: 0.3 l/s
- Flow rate at 1 bar with flow limiter: 0.18 l/s
- Minimum flow pressure: 1 bar
- Relative humidity: ? 100 %
- Calculated flow rate: 0.23 l/s
- Interval flush, adjustment range: 1?168 h
- Interval flush, factory setting: 24 h
- Interval flush time, adjustment range: 3?180 s
- Interval flush time, factory setting: 5 s
- Detection time, adjustment range: 3?15 s
- Detection time, factory setting: 7 s
- Flush time, adjustment range: 1?15 s
- Flush time, factory setting: 7 s
- For automatic flush actuation of urinals
- For Geberit frames for urinal with front actuation
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
- Cover plate with securing bar
- Reliable IR distance detection
- Self-adjusting IR sensor
- Infrared user detection with background fade-out
- Water-saving hybrid mode can be set
- Flush time can be set
- Adjustable interval flush
- Dynamic flushing time adjustment
- Preflush can be set
- Can be switched to operation with covered urinal
- One-time flush after activation of the power supply
- Battery-operated
- Functions can be set and queried with the Geberit Service Handy
- Device settings and operation with mobile device via integrated Bluetooth? interface
- Compatible with Geberit Control App
- Wired networkable with Geberit gateway via GEBUS converter
- Wirelessly connectable with Geberit Gateway via Bluetooth?
- Compatible with Geberit Connect
- Warning when the battery is low
- Valve-closing function when battery is flat
- Flush actuation can be deactivated
- Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
Additional information
| Colour | |
|---|---|
| Brand | Geberit |
| Collection | |
| Height | |
| Width | |
| Depth | |
| Style | |
| Shape | |
| Button Shape | Square |
| Mounting | |
| Material | |
| Product Type |
