Description

• Product Type: Flush Plate
• Brand: Geberit
• Collection: Type50

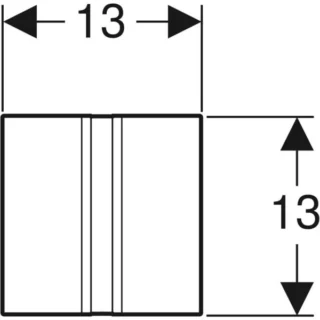

• Height: 130mm
• Width: 130mm
• Depth: 8mm
• Style: Modern
• Shape: Square
• Button Shape: Square
• Mounting: Wall
• Material: Die-Cast Zinc
• Easy to install and use
• Images are shown for illustration purpose only
• Battery type: Alkaline (1.5 V AA)
• Service life, supplied battery: 2 Years
• Protection degree: IP45
• Operating voltage: 3 V DC
• Flow pressure: 1?8 bar
• Test pressure, water max.: 16 bar
• Test pressure, air / inert gas max.: 3 bar
• Operating temperature, water max.: 30 ?C
• Flow rate at 1 bar without flow limiter: 0.3 l/s
• Flow rate at 1 bar with flow limiter: 0.18 l/s
• Minimum flow pressure: 1 bar
• Relative humidity: ? 100 %
• Calculated flow rate: 0.23 l/s
• Interval flush, adjustment range: 1?168 h
• Interval flush, factory setting: 24 h
• Interval flush time, adjustment range: 3?180 s
• Interval flush time, factory setting: 5 s
• Detection time, adjustment range: 3?15 s
• Detection time, factory setting: 7 s
• Flush time, adjustment range: 1?15 s
• Flush time, factory setting: 7 s
• For automatic flush actuation of urinals
• For Geberit frames for urinal with front actuation
• For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
• Cover plate with securing bar
• Reliable IR distance detection
• Self-adjusting IR sensor
• Infrared user detection with background fade-out
• Water-saving hybrid mode can be set
• Flush time can be set
• Adjustable interval flush
• Dynamic flushing time adjustment
• Preflush can be set
• Can be switched to operation with covered urinal
• One-time flush after activation of the power supply
• Battery-operated
• Functions can be set and queried with the Geberit Service Handy
• Device settings and operation with mobile device via integrated Bluetooth? interface
• Compatible with Geberit Control App
• Wired networkable with Geberit gateway via GEBUS converter
• Wirelessly connectable with Geberit Gateway via Bluetooth?
• Compatible with Geberit Connect
• Warning when the battery is low
• Valve-closing function when battery is flat
• Flush actuation can be deactivated
• Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
