Description

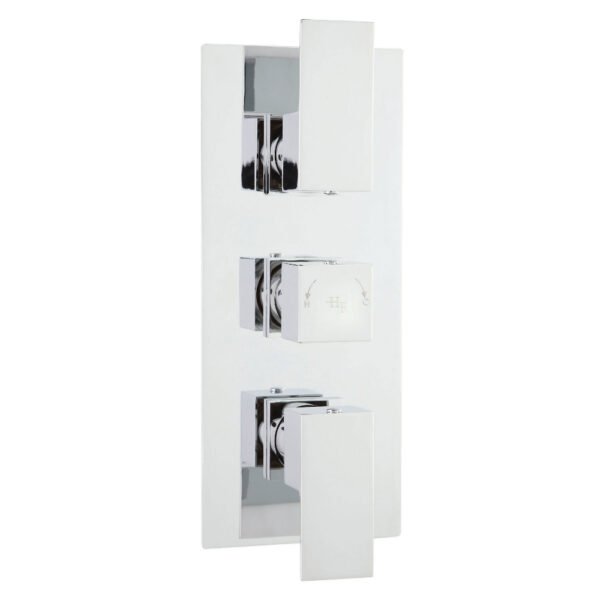

• Product Type: Concealed Shower Valve
• Brand: Hudson Reed
• Style: Contemporary
• Finish: Chrome
• Guarantee: 20 Years
• Material: Brass/ABS

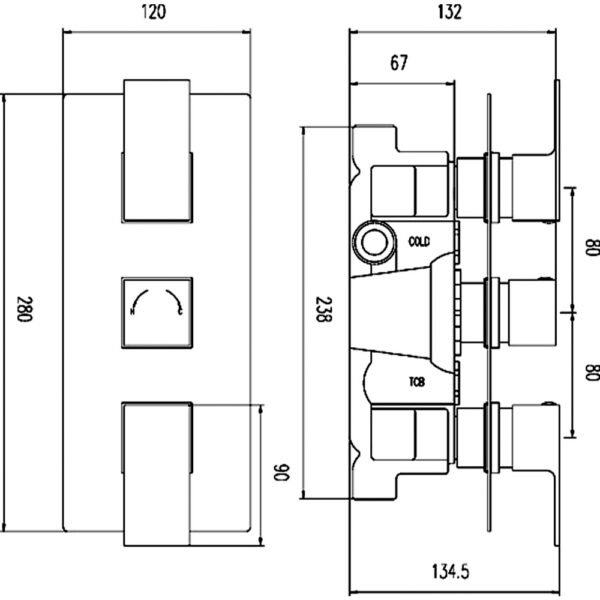

• Product Height: 280mm
• Product Width: 120mm
• Product Depth: 135mm
• Mounting: Recessed/Wall
• Handle Type: Square/Lever
• Orientation: Portrait
• Minimum Operating Pressure (Bar): 0.1 Bar
• Maximum Operating Pressure (Bar): 3.0 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: Yes
• Flow Rate at 0.1 Bar (L/min): 5.5
• Flow Rate at 0.5 Bar (L/min): 14L/min
• Flow Rate at 2 Bar (L/min): 20L/min
• Flow Rate at 2 Bar (L/min): 29L/min
• Flow Rate at 3 Bar (L/min): 44L/min
• Shape: Rectangular
• Shower Valve Position: Concealed
• Shower Valve Controls: 3
• Outlets: 2
• Shower Type: Thermostatic
• Inlet Connection Size: 15mm & 22mm
• Minimalist sleek design
• Accurate flow control
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Simply remove the cartridge turn 180 degree and replace
• Excellent flow rates – even at low pressure
• Simply remove the cartridge turn 180 degree and replace
• Images are shown for illustration purposes only
