Description

• Product Type: Concealed Shower Valve
• Brand: Hudson Reed
• Style: Contemporary
• Finish: Chrome
• Guarantee: 20 Years
• Material: Brass/ABS

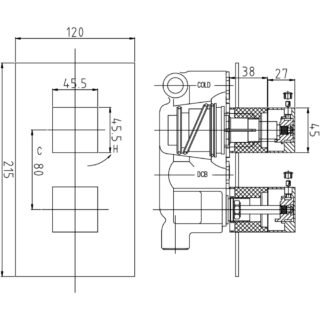

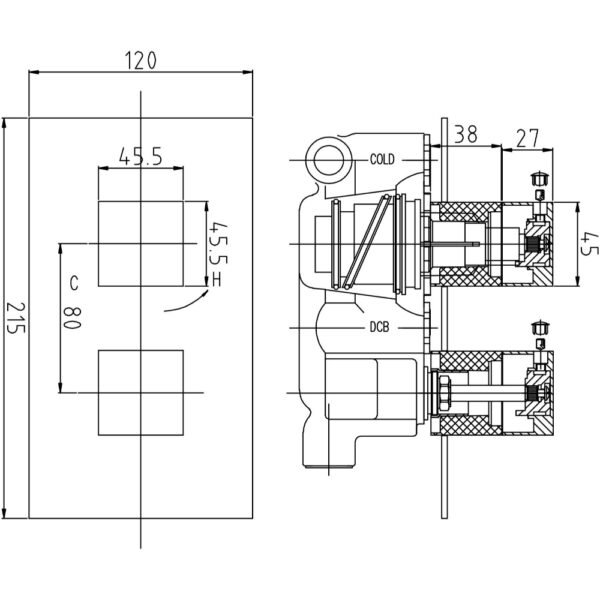

• Product Height: 215mm
• Product Width: 120mm
• Product Depth: 135mm
• Mounting: Recessed/Wall
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: Yes
• Flow Rate at 0.1 Bar (L/min): 5.5
• Flow Rate at 0.5 Bar (L/min): 14L/min
• Flow Rate at 2 Bar (L/min): 20L/min
• Flow Rate at 2 Bar (L/min): 29L/min
• Flow Rate at 3 Bar (L/min): 44L/min
• Outlets: 1
• Slimline design
• Can be fitted vertically or horizontally
• Accurate flow control
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
• The unique cartridge is highly resistant to calcium build up – even in hard water areas
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
• Excellent flow rates – even at low pressure
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
• Simply remove the cartridge turn 180? and replace
• Images are shown for illustration purposes only
