Description

• Product Type: Concealed Shower Valve
• Brand: Hudson Reed
• Style: Contemporary
• Finish: Chrome
• Guarantee: 20 Years
• Material: Brass/ABS

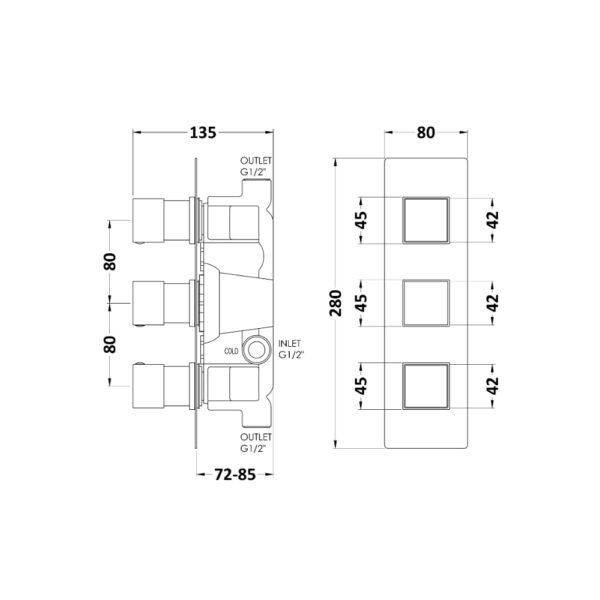

• Product Height: 280mm
• Product Width: 80mm
• Product Depth: 136mm
• Mounting: Recessed/Wall
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: Yes
• Flow Rate at 0.1 Bar (L/min): 5.5
• Flow Rate at 0.5 Bar (L/min): 14L/min
• Flow Rate at 2 Bar (L/min): 20L/min
• Flow Rate at 2 Bar (L/min): 29L/min
• Flow Rate at 3 Bar (L/min): 44L/min
• Outlets: 2
• Accurate flow control
• High quality internal brassware for long life
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• Fully reversible cartridge meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
• Excellent flow rates – even at low pressure
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The patented cartridge is highly resistant to calcium build up – even in hard water areas
• Images are shown for illustration purposes only
