Description

• Product Type: Concealed Shower Valve
• Brand: Hudson Reed
• Range: Topaz
• Style: Traditional
• Finish: Chrome
• Guarantee: 20 Years
• Material: Brass/ABS

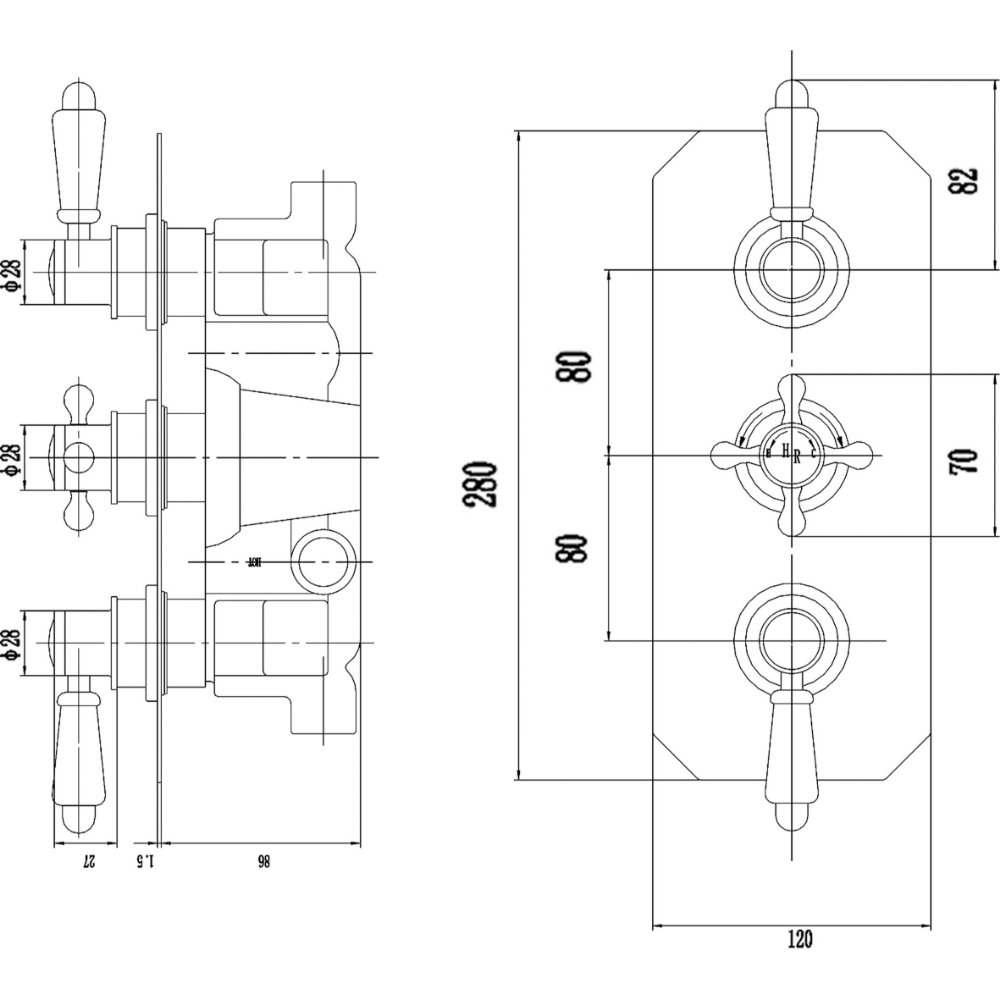

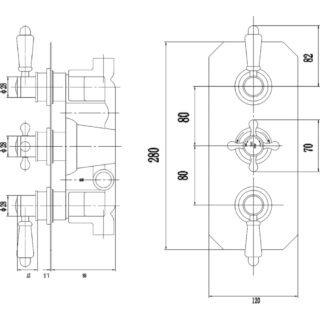

• Product Height: 320mm
• Product Width: 120mm
• Product Depth: 135mm
• Mounting: Recessed/Wall
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: Yes
• Flow Rate at 0.1 Bar (L/min): 5.5
• Flow Rate at 0.5 Bar (L/min): 13L/min
• Flow Rate at 2 Bar (L/min): 20L/min
• Flow Rate at 2 Bar (L/min): 29L/min
• Flow Rate at 3 Bar (L/min): 44L/min
• Outlets: 2
• Combining the elegance of traditional styling with the precision and technology of modern day design
• Accurate flow control
• Thermostatic control to +/- 1 degree – even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The unique cartridge is highly resistant to calcium build up – even in hard water areas
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
• Excellent flow rates – even at low pressure
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
• Simply remove the cartridge turn 180? and replace
• Images are shown for illustration purposes only
