Description

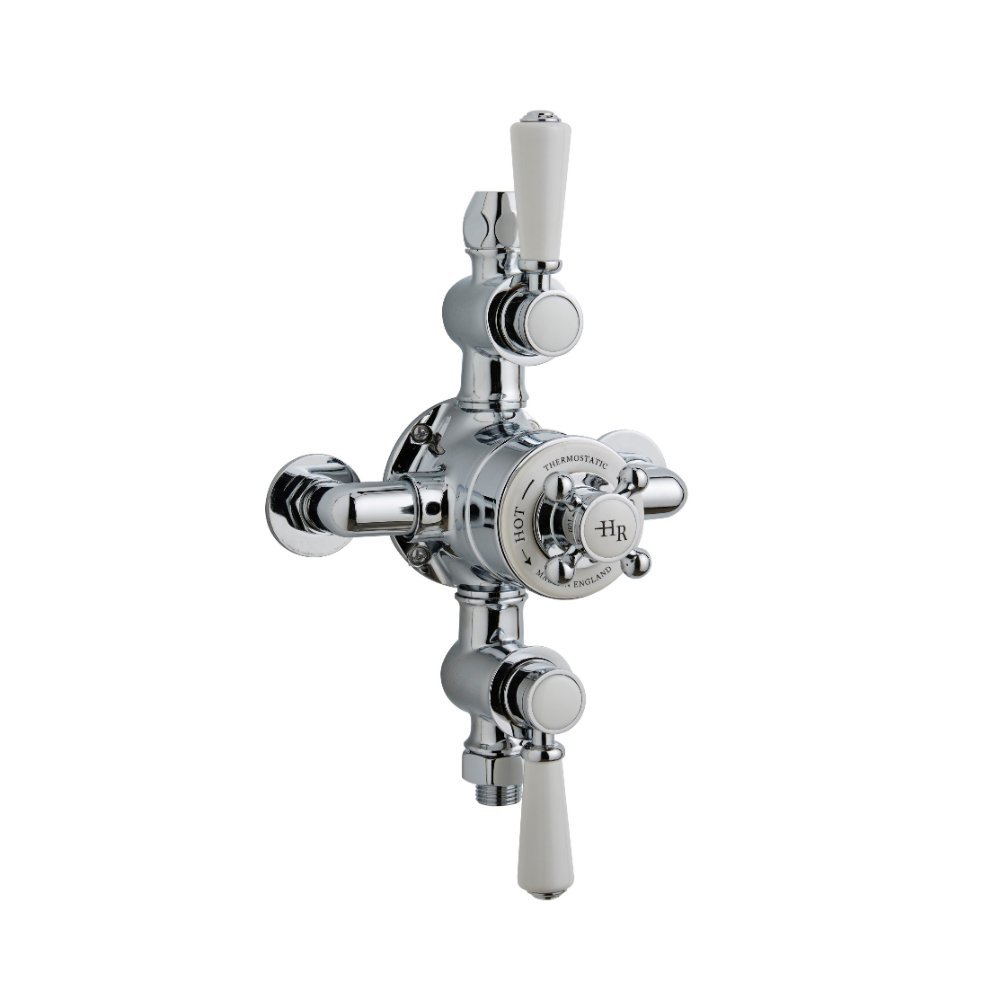

• Product Type: Exposed Shower Valve
• Brand: Hudson Reed
• Range: Topaz
• Style: Traditional
• Finish: Chrome
• Guarantee: 20 Years
• Material: Brass
• Product Height: 332mm
• Product Width: 195mm
• Product Depth: 135mm
• Mounting: Wall
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: No
• Flow Rate at 0.1 Bar (L/min): 4.5
• Flow Rate at 0.5 Bar (L/min): 13L/min
• Flow Rate at 2 Bar (L/min): 18.5L/min
• Flow Rate at 2 Bar (L/min): 26L/min
• Flow Rate at 3 Bar (L/min): 33L/min
• Outlets: 2
• Combining the elegance of traditional styling with the precision and technology of modern day design
• Accurate flow control
• Thermostatic control to +/- 1 degree – even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The unique cartridge is highly resistant to calcium build up – even in hard water areas
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
• Excellent flow rates – even at low pressure
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
• Simply remove the cartridge turn 180? and replac
• Images are shown for illustration purposes only
